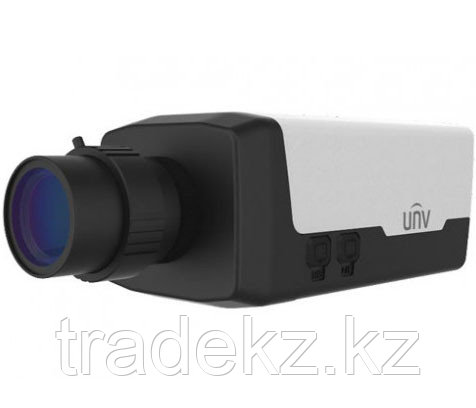

IPC542E-DLC-C Корпусная IP-камера

IPC542E-DLC-C Camera Sensor 1/2.8", 2.0 megapixel, progressive scan, CMOS Shutter Auto/Manual, 1 ~ 1/100000s Minimum Illumination Colour: 0.0005Lux (F1.2, AGC ON) B/W: 0.0001Lux(F1.2, AGC ON) Lens Mount C/CS Iris DC-Iris/P-Iris, DC 5V (4 Pins) Day/Night IR-cut filter with auto switch (ICR) Digital noise reduction 2D/3D DNR S/N >52dB Defog Digital Defog WDR 120dB Video Video Compression Ultra 265, H.264, MJPEG H.264 code profile Baseline profile, Main Profile, High Profile Frame Rate Main Stream: 2MP (1920*1080), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps 9:16 Corridor Mode Supported HLC Supported BLC Supported OSD Up to 8 OSDs Privacy Mask Up to 8 areas ROI Up to 8 areas Motion Detection Up to 4 areas Smart General Function Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication Audio Audio Compression G.711 Two-way audio Supported Suppression Supported Sampling Rate 8KHZ Storage Edge Storage Micro SD, up to 256GB Network Storage ANR Network Protocols IPv4, IGMP,ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS Compatible Integration ONVIF (Profile S, Profile G), API Interface Audio I/O 3.5mm audio interface Input: impedance 35kΩ; amplitude 2V [p-p] Output: impedance 600Ω; amplitude 2V [p-p] Alarm I/O 2/1 Zoom/focus N/A Serial Port 1 RS485 (support Pelco-D/P) Network 1 RJ45 10M/100M Base-TX Ethernet Video Output 1 BNC, impedance 75Ω; amplitude 1V [p-p] General Power AC 24V±10%, DC 12V±10%, PoE (IEEE 802.3af) Power consumption: Max 6.8W Dimensions (L × W × H) 151.5 x 71 x 65mm (6.0“ x 2.8“ x 2.6”) (excluding the lens) Weight 0.48kg (1.1lb) Working Environment -20°C ~ 60°C (-4°F ~ 140°F), Humidity: ≤95% RH (non-condensing) Reset Button Supported
